DAB 100-3IR

- Weighing range [Max] – 110 g;

- readability [d] – 0.001 g;

- Temperature [min] (°C) – 40 °C;

- Temperature [max] (°C) – 160 °C

- reproducibility – 0.001 g;

- linearity – ± 0.003 g;

- solution time – 3 s;

- Units – g, % moisture, % dry matter

- Resolution Humidity [d] (%) – 0.01%

- drying modes – Standard drying, Quick drying, Gentle drying

- Shutdown criteria

   – with time control, automatic, manual

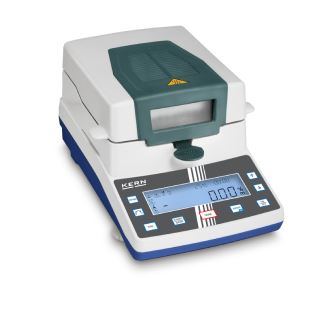

Description: The DAB 100-3IR moisture analyzer is equipped with a high-quality infrared emitter and provides a maximum weighing capacity of 110 grams with a reading accuracy of 0.001 grams. It operates over a temperature range of 40°C to 160°C and provides excellent repeatability at 0.001 grams and low linearity deviation of ±0.003 grams. The analyzer offers a variety of measurement units including grams, percent moisture, and percent dry matter, with a moisture measurement accuracy of 0.01%. It has a variety of drying modes including standard, fast and gentle dry, and offers multiple shutdown criteria including time control, automatic and manual.

Application: This moisture analyzer is designed to accurately and efficiently determine the moisture content of a wide range of samples using infrared heating technology. It is suitable for industries such as food, pharmaceutical, chemical and materials testing. The analyzer's versatility in temperature settings and drying modes allows it to easily and accurately handle a variety of sample types and moisture analysis requirements.
