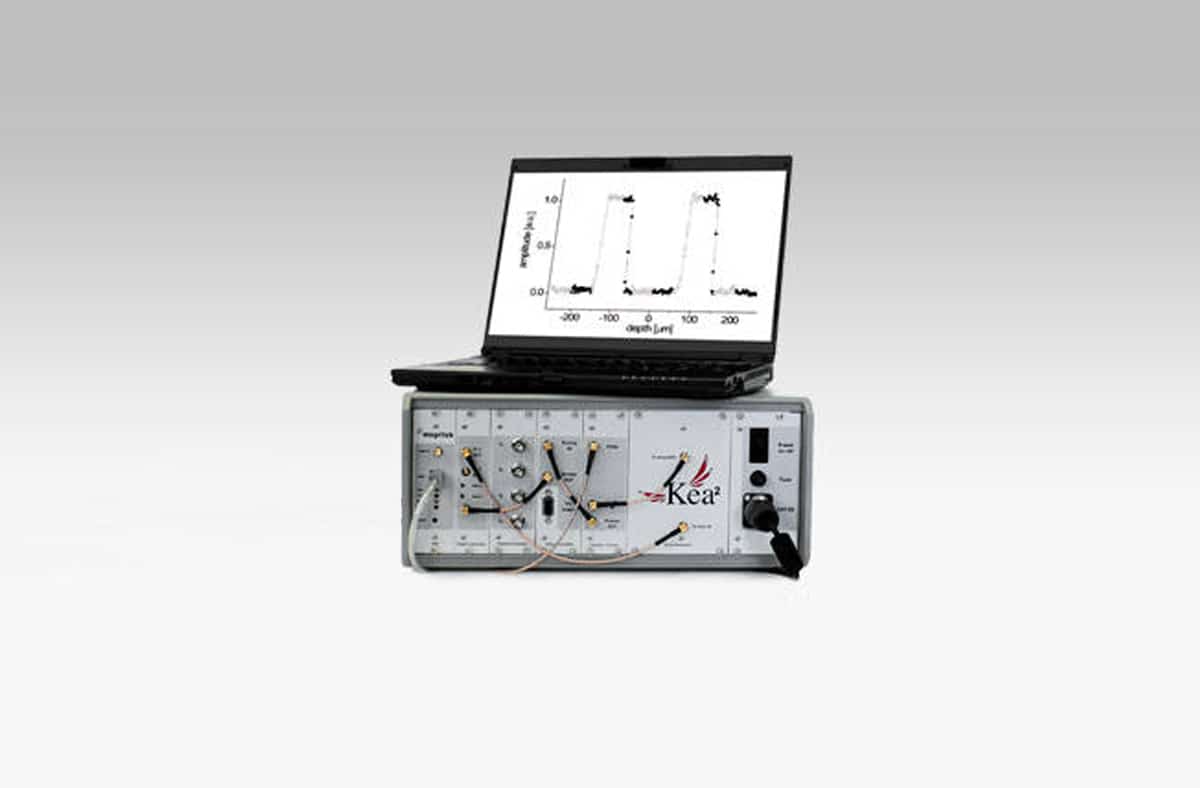

Kea 2 NMR spectrometer

Specifications

System Core / DSP Control Module:

  • Interface: Full speed USB 2.0
  • Pulse program timing resolution: 100 ns
  • Waveform memory: 256 k (128 k waveform, 128 k data) 24-bit samples.
  • User interface: Prospa software
  • I/O: 8 TTL outputs, 1 TTL input

Digital Receiver:

  • Input impedance: 50 Ω
  • Sample rate: 100 MHz
  • Resolution: 16-bit
  • Input bandwidth: 50 MHz
  • Digital filtering: programmable.

Digital Transmitter:

  • DDS output level: 0 dBm
  • Transmitter output power: 1 mW
  • Output impedance: 50 Ω
  • Clock rate: 1 GHz
  • Frequency stability: 1 ppm/C standard, or <1 ppb/C with optional oven controlled oscillator
  • Modulation capabilities: frequency, phase and amplitude modulation.
  • Maximum update rate: 2 MHz

Receiver Amplifier:

  • Operating range: 1 to 100 MHz
  • Gain: -20 to +70 dB, digitally controlled in 3 dB steps (0 to 60 dB for low frequency Kea).
  • Input/output impedance: 50 Ω
  • Analog filter: 50 MHz blocks

Preamp Duplexer (Optional):

  • Preamplifier gain: 37 dB
  • Preamplifier noise figure: < 1.5 dB
  • Dead time < 10 microseconds

Transmitter Amplifier (Optional):

  • Transmitter output power: 100 W to 50 MHz, 30 W to 100 MHz

Imaging Module (Optional):

  • Number of channels: 4
  • Maximum output voltage: +/- 10 V
  • Digital resolution: 16 bits

Power Supply:

  • Voltage: 24 V DC
  • Current: 2.5 A DC

Dimensions:

  • Size: 360 x 230 x 150 mm
  • Weight: 5 kg (11 lb)
