Spinsolve family of NMR spectrometers

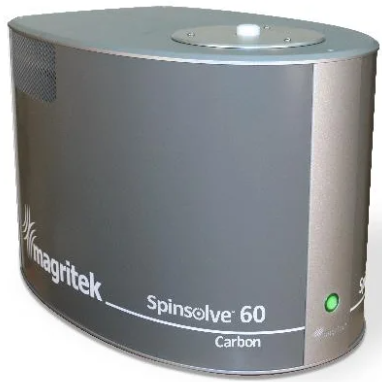

Spinsolve 60 MHz
Features of Spinsolve 60 MHz
- 1H frequency: 60 MHz
- 1H and 19F on all systems + X nuclei for dual channel systems
- Resolution:
- Spinsolve 60 : <0.5 Hz (50%) / <20 Hz (0.55%)
- Spinsolve 60 Plus: <0.35 Hz (50%) / <10 Hz (0.55%)
- Spinsolve 60 Ultra: <0.2 Hz (50 %) / <7 Hz (0.55%) / <14 Hz (0.11%)
- Exceptional Sensitivity: 200:1 (Single channel) / 130:1 (Double channel) for 1% Ethyl Benzene
- 3D PFG gradients optimized for gradient-enhanced methods
- Optional PFG gradients for diffusion spectroscopy (>0.5 T/m)
- No cryogens
- Unparalleled stability
- External Hardware Lock with no need for deuterated solvents
- Suitable for on-line reaction monitoring
- Easy to operate
- Compatible with automatic sample changer
Request quote
- 1H and 19F on all systems + X nuclei for dual channel systems
- Resolution:
- Spinsolve 60 : <0.5 Hz (50%) / <20 Hz (0.55%)
- Spinsolve 60 Plus: <0.35 Hz (50%) / <10 Hz (0.55%)
- Spinsolve 60 Ultra: <0.2 Hz (50 %) / <7 Hz (0.55%) / <14 Hz (0.11%)
- Exceptional Sensitivity: 200:1 (Single channel) / 130:1 (Double channel) for 1% Ethyl Benzene
- 3D PFG gradients optimized for gradient-enhanced methods
- Optional PFG gradients for diffusion spectroscopy (>0.5 T/m)
- No cryogens
- Unparalleled stability
- External Hardware Lock with no need for deuterated solvents
- Suitable for on-line reaction monitoring
- Easy to operate
- Compatible with automatic sample changer
Specifications
- Frequency: 60 MHz
- Nuclei: All models measure 1H and 19F and have the option to include one or more nuclei like 7Li, 11B, 13C, 15N, 23Na, 29Si, 31P (ask for others)
- Resolution :
- Spinsolve 60: 50% < 0.5 Hz / 0.55% < 20 Hz
- Spinsolve 60 Plus: 50% <0.35 Hz / (0.55% <10 Hz
- Spinsolve 60 ULTRA: 50% < 0.2 Hz / 0.55% < 7 Hz / 0.11% < 14Hz
- Spinning: Not required. Compressed air: Not required
- Sensitivity (*): > 200:1 for 1H/19F, and > 130:1 for multinuclear option
- Sample: Standard 5 mm OD NMR sample tubes, minimum length 7″
- External Hardware Lock with no need for deuterated solvents
- Stray Field: 2G line completely inside spectrometer
- Weight: 60 kg
- Dimensions: 58 x 43 x 40 cm (23” x 17” x 16”)
- Operating Temperature Range: 18° C to 28° C (65° F to 82° F)
- Voltage Requirement: 100-240 VAC, 50/60 Hz
- Nuclei: All models measure 1H and 19F and have the option to include one or more nuclei like 7Li, 11B, 13C, 15N, 23Na, 29Si, 31P (ask for others)
- Resolution :
- Spinsolve 60: 50% < 0.5 Hz / 0.55% < 20 Hz
- Spinsolve 60 Plus: 50% <0.35 Hz / (0.55% <10 Hz
- Spinsolve 60 ULTRA: 50% < 0.2 Hz / 0.55% < 7 Hz / 0.11% < 14Hz
- Spinning: Not required. Compressed air: Not required
- Sensitivity (*): > 200:1 for 1H/19F, and > 130:1 for multinuclear option
- Sample: Standard 5 mm OD NMR sample tubes, minimum length 7″
- External Hardware Lock with no need for deuterated solvents
- Stray Field: 2G line completely inside spectrometer
- Weight: 60 kg
- Dimensions: 58 x 43 x 40 cm (23” x 17” x 16”)
- Operating Temperature Range: 18° C to 28° C (65° F to 82° F)
- Voltage Requirement: 100-240 VAC, 50/60 Hz
(*) Sensitivity measured in a single scan on a 1% ethylbenzene sample dissolved in deuterated chloroform. The signal used for the calculation is the one of the methylene group and the noise is calculated for a signal free region between the aromatic and the methylene signals.
Applications
- Research Laboratories
- Industrial QA/QC Laboratories
- Undergraduate Education
- Industrial QA/QC Laboratories
- Undergraduate Education
