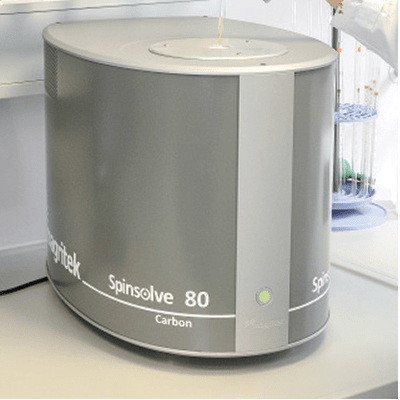

Spinsolve 80
Features of Spinsolve 80 MHz
Spinsolve 80
- Nuclei: 1H, 19F, 13C, 31P, 29Si, 7Li, 15N, 11B, 23Na (more available)
- Operating frequency: 80 MHz (1H)
- Linewidth at 50% <0.4 Hz
- Linewidth at 0.55% <15 Hz
- Linewidth at 0.11% <30 Hz
- Sensitivity: 280:1 (Single channel for 1% Ethyl Benzene)
- Sensitivity: 200:1 (Dual channel for 1% Ethyl Benzene)
- 3D PFG gradients optimized for gradient-enhanced methods
- Optional PFG gradients for diffusion spectroscopy (>0.5 T/m)
- No cryogens
- External Hardware Lock with no need for deuterated solvents
- Unparalleled stability
- Suitable for on-line reaction monitoring
- Easy to operate
- Compatible with automatic sample changer
- Dimensions: 58 x 43 x 40 cm (23” x 17” x 16”)
- Weight: 72.5 kg (160 lb)
Specifications
Nuclei: 1H, 19F, 13C (Other Nuclei Available)
- Operating frequency: 80 MHz (1H)- Resolution:
- Spinsolve 80 : <0.4 Hz (50%) / <15 Hz (0.55%) / <30 Hz (0.11%)
- Spinsolve 80 Ultra: <0.2 Hz (50 %) / <10 Hz (0.55%) / <20 Hz (0.11%)
- 1H Sensitivity (*)(Single channel): >280:1 for 1% Ethyl Benzene
- 1H Sensitivity (*)(dual channel): >200:1 for 1% Ethyl Benzene
- Operating Temperature Range: 18° C to 28° C (65° F to 82° F)
(*) Sensitivity measured in a single scan on a 1% ethylbenzene sample dissolved in deuterated chloroform. The signal used for the calculation is the one of the methylene group and the noise is calculated for a signal free region between the aromatic and the methylene signals.
- Sample: Standard 5 mm OD NMR sample tubes, 7″ length
- Minimum Sample Volume: 200 uL
- External Hardware Lock with no need for deuterated solvents
- Deuterium solvent not required
- Optional PFG gradients for diffusion spectroscopy (>0.5 T/m)
- 3D PFG gradients optimized for gradient-enhanced methods
- Dimensions: 58 x 43 x 40 cm (23” x 17” x 16”)
- Weight: 72.5 kg (160 lb)
- Stray Field: < 2 G all around system
- Voltage Requirement: 100-240 VAC, 50/60 Hz
- Available with automatic sample changer
