MALDI-TOF/TOF

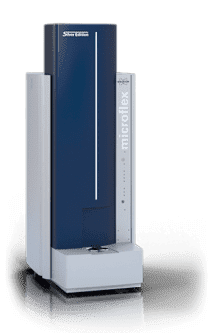

microflex®


The microflex® LRF can be operated in positive and negative ion mode using the linear or reflector detector.

The saturation free detector technology enables highest dynamic range and superior performance for high-mass detection.

Ion generation is achieved using a 60 Hz N2-Cartridge-Laser including variable power attenuator and UV optics.

The microScout ion source uses the exact dimensions of 1/4 microtiter plate with a medium area target plate (54 mm x 36 mm), allowing to stay compatible with MTP formats using pipetting robots.

The pumping system is fully integrated into the system and comprises a vacuum measurement and control unit as well as a 70 l/sec turbo-molecular pump and a diaphragm pump.
