Benchtop NMR

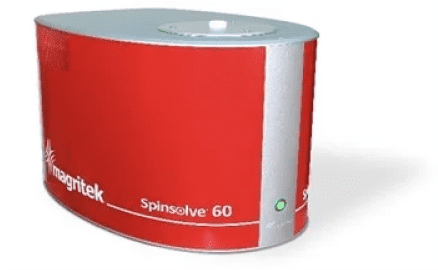

Spinsolve 60 Ultra benchtop NMR spinsolve 60 MHz


Nuclei: 1H, 19F, and may include one or more nuclei such as 7Li, 11B, 13C, 15N, 23Na, 29Si, 31P (other nuclei available).

-Operating frequency: >60 MHz

- Spinsolve resolution 90 MHz

50%<0.2Hz/55%<7Hz/0.11%<14Hz

-Sensitivity (*) : > 200:1 for 1H/ 19F and > 130:1 for multi-core option

Sample: Standard NMR sample tubes with 5 mm OD, minimum length 7 inches.

External hardware lock without the need for deuterated solvents

Scattered field: 2G line completely inside the spectrometer

Weight: 60 kg

Dimensions: 58 x 43 x 40 cm (23" x 17" x 16")

Operating temperature range: 18°C ​​to 28°C (65°F to 82°F)

Required voltage: 100-240 VAC, 50/60 Hz
